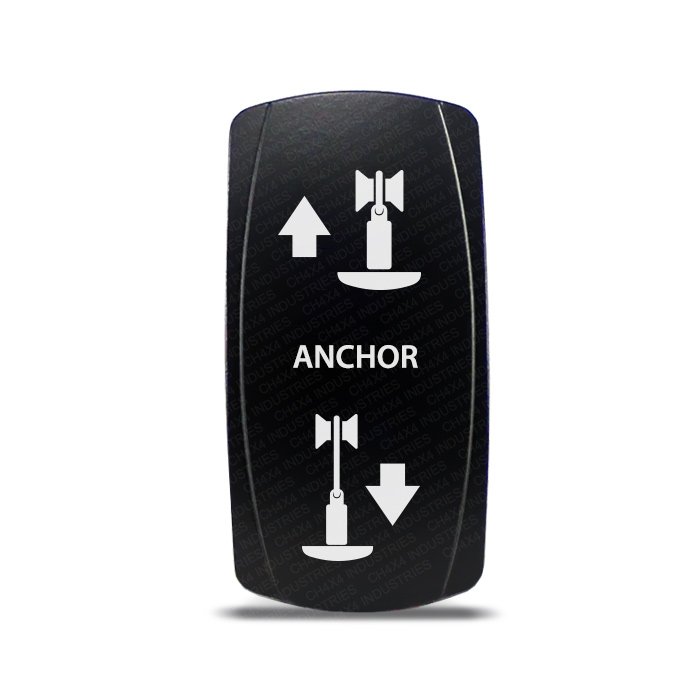

CH4X4 Marine Momentary Rocker Switch Anchor Symbol – 12V/24V Marine-Grade Twin-Light Laser-Etched Momentary Switch

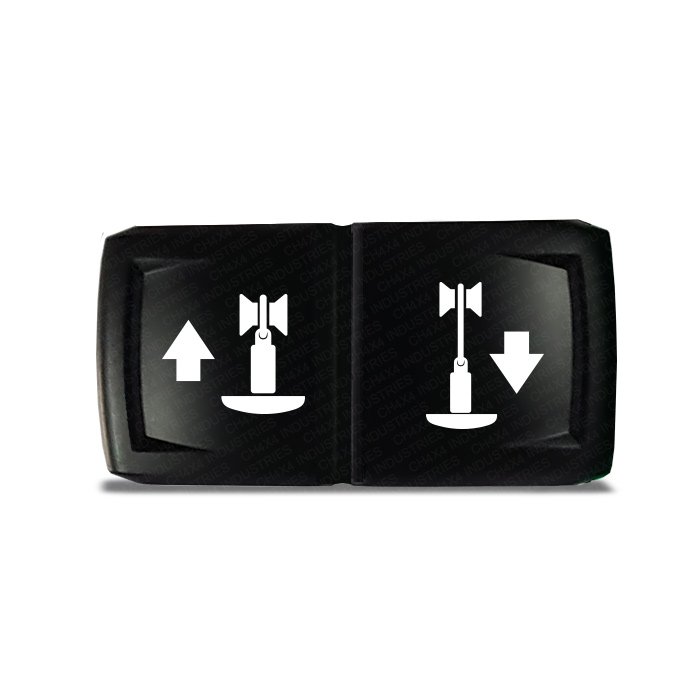

CH4X4 Marine Momentary Rocker Switch Anchor Symbol – 12V/24V Marine-Grade Twin-Light Laser-Etched Momentary Switch - Image 2

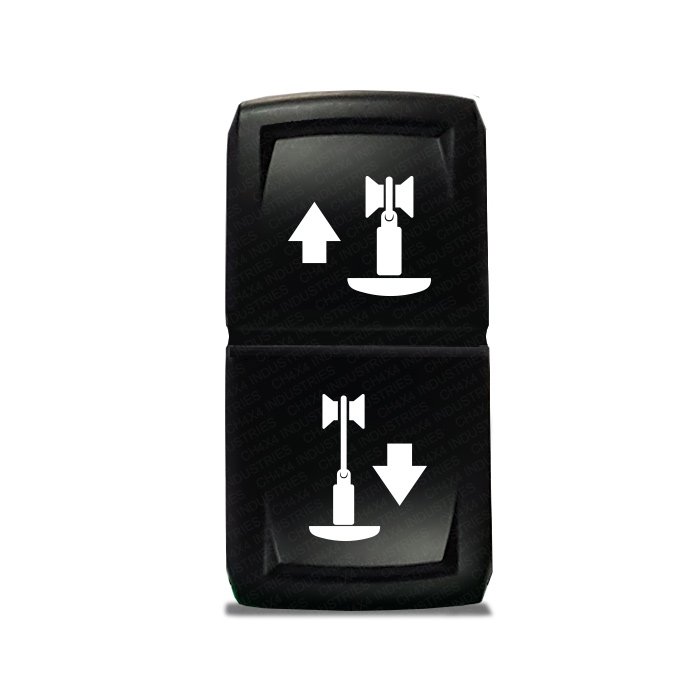

CH4X4 Marine Momentary Rocker Switch Anchor Symbol – 12V/24V Marine-Grade Twin-Light Laser-Etched Momentary Switch - Image 3

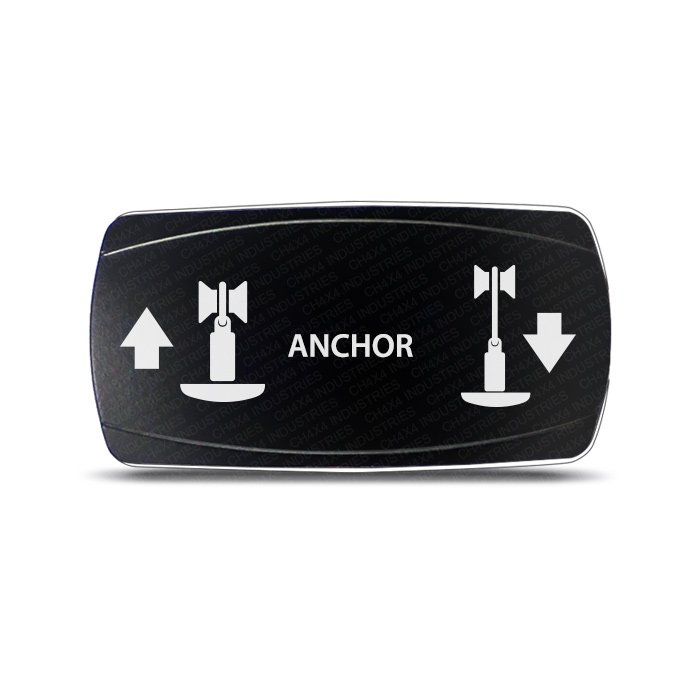

CH4X4 Marine Momentary Rocker Switch Anchor Symbol – 12V/24V Marine-Grade Twin-Light Laser-Etched Momentary Switch - Image 4

CH4X4 Marine Momentary Rocker Switch Anchor Symbol – 12V/24V Marine-Grade Twin-Light Laser-Etched Momentary Switch

$21.98

CH4X4 Marine Momentary Rocker Switch Anchor Symbol are high quality marine grade switch, double throw momentary, designed to operate all of your 12v or 24v accessories or devices, perfect for use on a boat or marine vessel.

Switch LED Color

Switch Model

Switch Orientation

Clear

Description
Additional information

Built for the water, the Marine Momentary Rocker Switch Anchor is a marine-grade momentary rocker switch, spring-loaded to center and certified IP66.

Rated IP66 and UL1500 for marine ignition protection, it shrugs off vibration, shock, thermal shock, moisture, and salt spray in temperatures from -40°C to 85°C.

The design is laser etched directly into the switch face for a clean, professional look that lasts — no stickers or printed graphics that peel or wear away.

Twin Light Indicator

Two indicator lights are built in, tied to switch position:

Upper lights turn ON when the switch is pressed UP
Lower light turns ON when the switch is pressed DOWN
Springs back to center automatically, lights off, when released

Features

Double Pole Double Throw Momentary switch
Black hard-surface rocker body
Laser-etched design, never a sticker
Twin incandescent indicator lights
Rated 20A at 12V / 10A at 24V
Carling / Contura V-style mounting format
Snap-in panel installation, no rear terminal barriers
Wiring diagram included
IP66-rated, UL1500 marine ignition protection
Works across automotive, 4×4, truck, UTV, ATV, RV, and marine builds

Dimensions

Switch Face: 2" x 1" (50mm x 25mm)
Mounting Cutout: 1.45" x 0.83" (36.83mm x 21.08mm)

Note: This is a universal aftermarket rocker switch, not a factory-specific replacement part. Confirm your panel’s cutout dimensions before ordering — some vehicles may need an adapter panel or minor modification to fit.

Weight	2 oz
Dimensions	5 × 5 × 2 in
Vehicle	Marine Designs
Switch Action	Momentary
Switch LED Color	Amber, Blue, Green, Red, White
Switch Model	Regular Rocker Cap, V2 Rocker Cap
Switch Orientation	Horizontal, Vertical
Switch Type	Rocker
Function	Momentary
Voltage	12V 20A, 24V 10A
Compatibility	Carling, Contura V
Environment	Marine Weatherproof
Orientation	Vertical

Built For Real-World Use

Every CH4X4 Marine Momentary Rocker Switch Anchor Symbol – 12V/24V Marine-Grade Twin-Light Laser-Etched Momentary Switch is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Marine applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a Momentary switch — it only stays active while you hold it and springs back off, ideal for horns, winches, and anything you only want on for a moment.

What vehicles is this switch compatible with?

This switch is built for Marine applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
