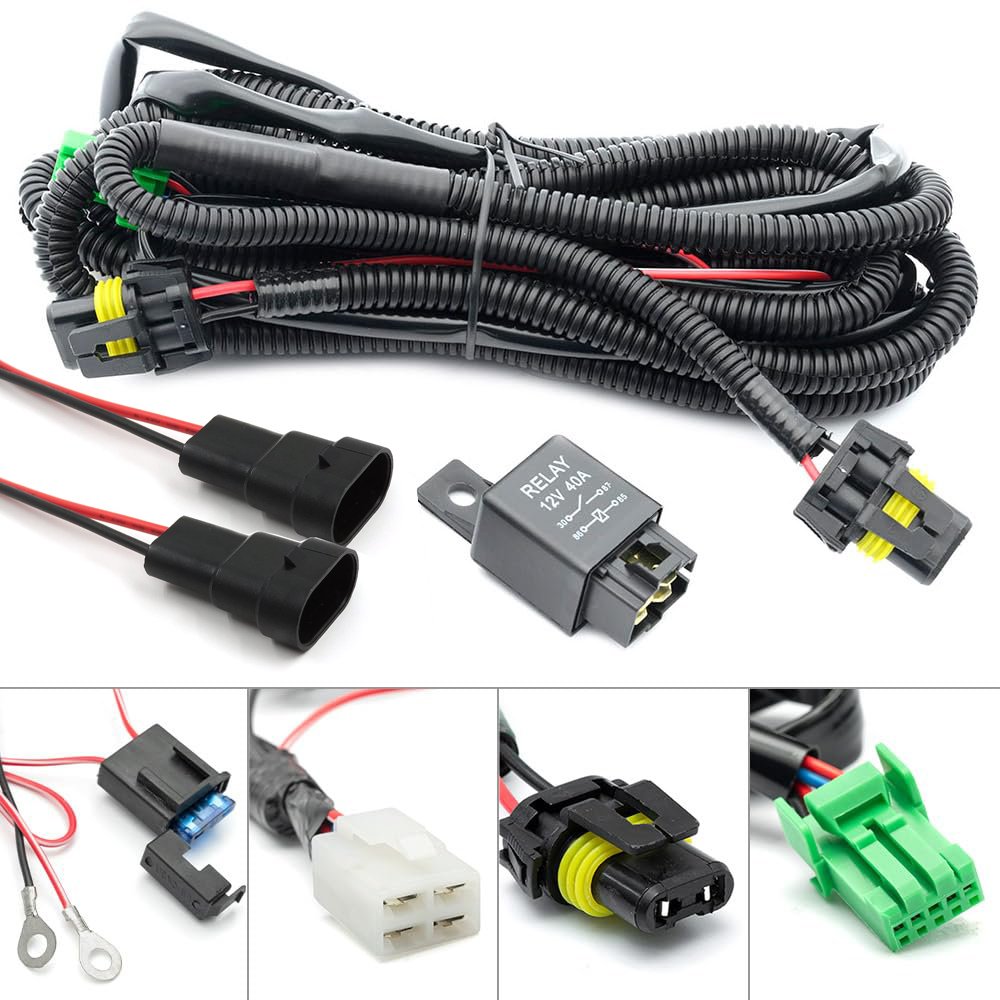

CH4X4 Wiring Harness for Toyota “Push Style” Switches (Large & Small) allows you to easily install a kit of 2 auxiliary lights (Fog or Off-Road Lights) with our regular or small size PUSH switches.

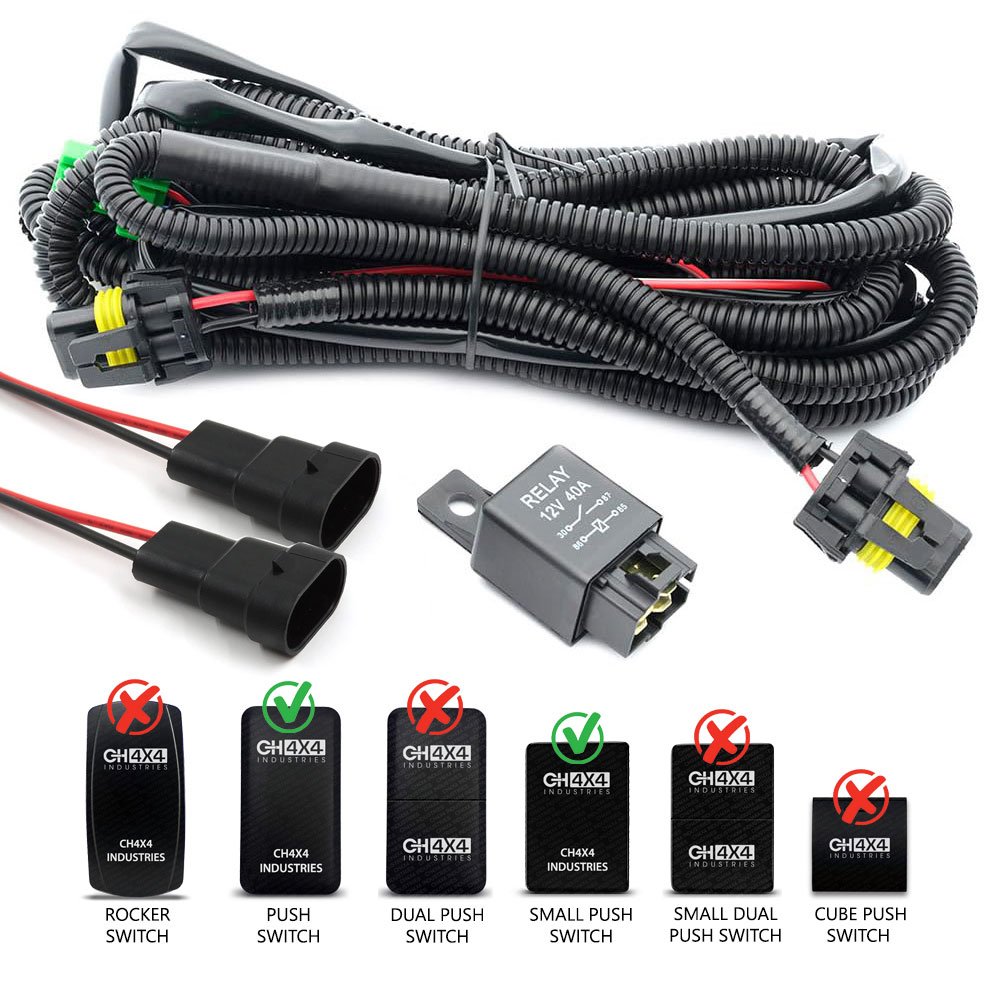

NOTE: The CH4X4 Wiring Harness does not work on the CUBE AND DUAL PUSH SWITCHES for Toyota (Large & Small)

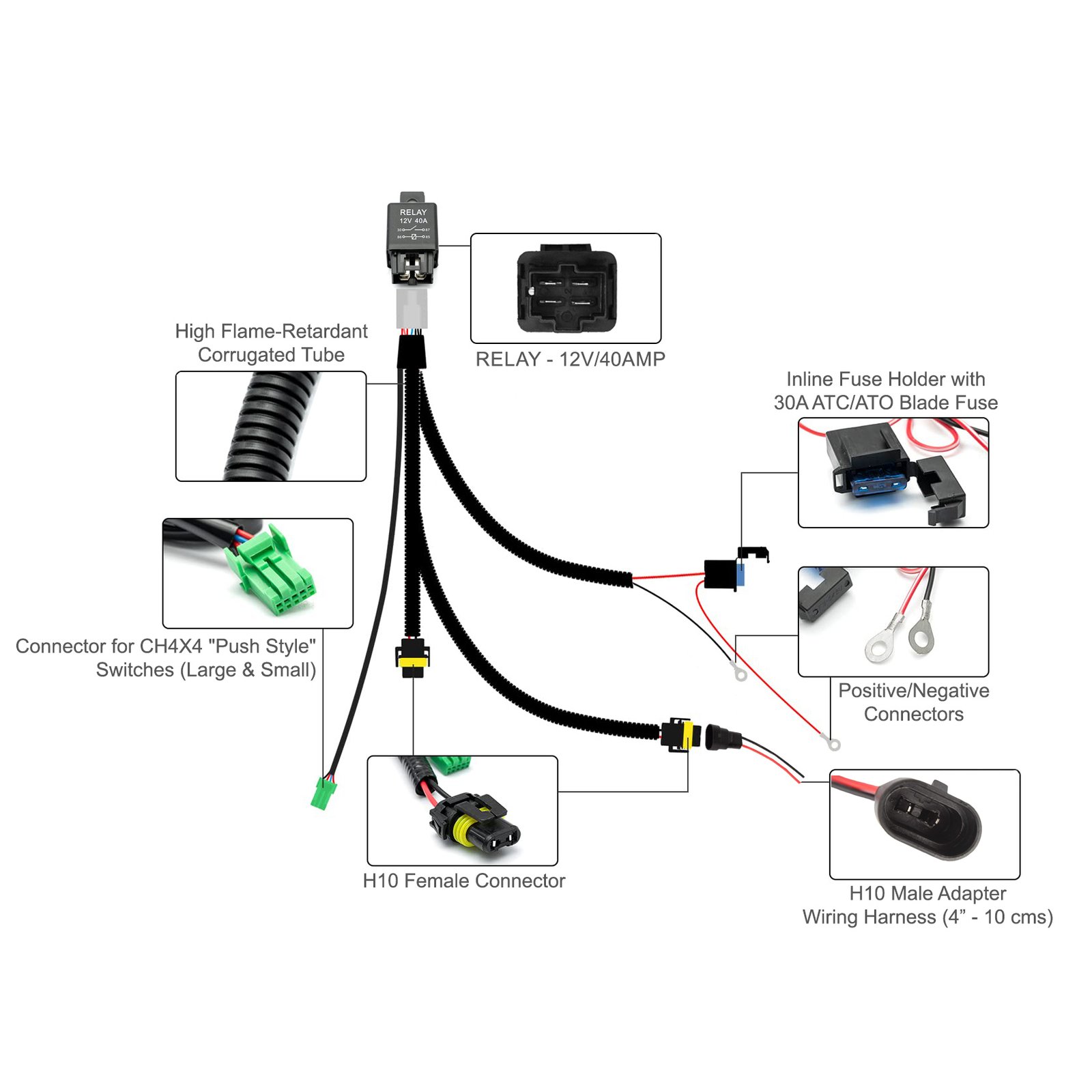

FEATURES:
• Good for any system between 9V-16V with wattage not exceeding 130W
• Stable characteristics, high reliability. Profession installation highly recommended
• High flame-retardant corrugated tube harness protection housing
• 30A blade in-line fuse holder
• 40A 12V SPST make and break relay, isolate high current to ensure circuit safety
• H10 H12 HB3 HB4 HIR2 female connector socket

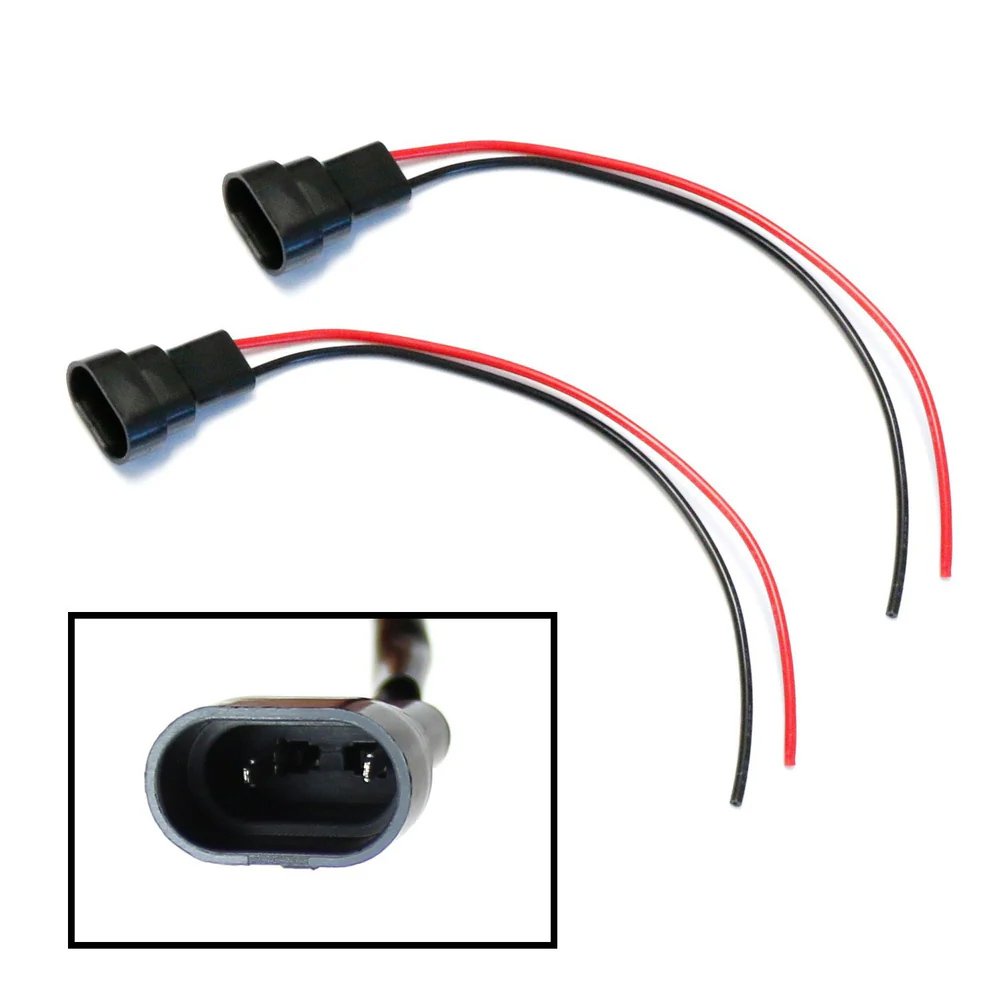

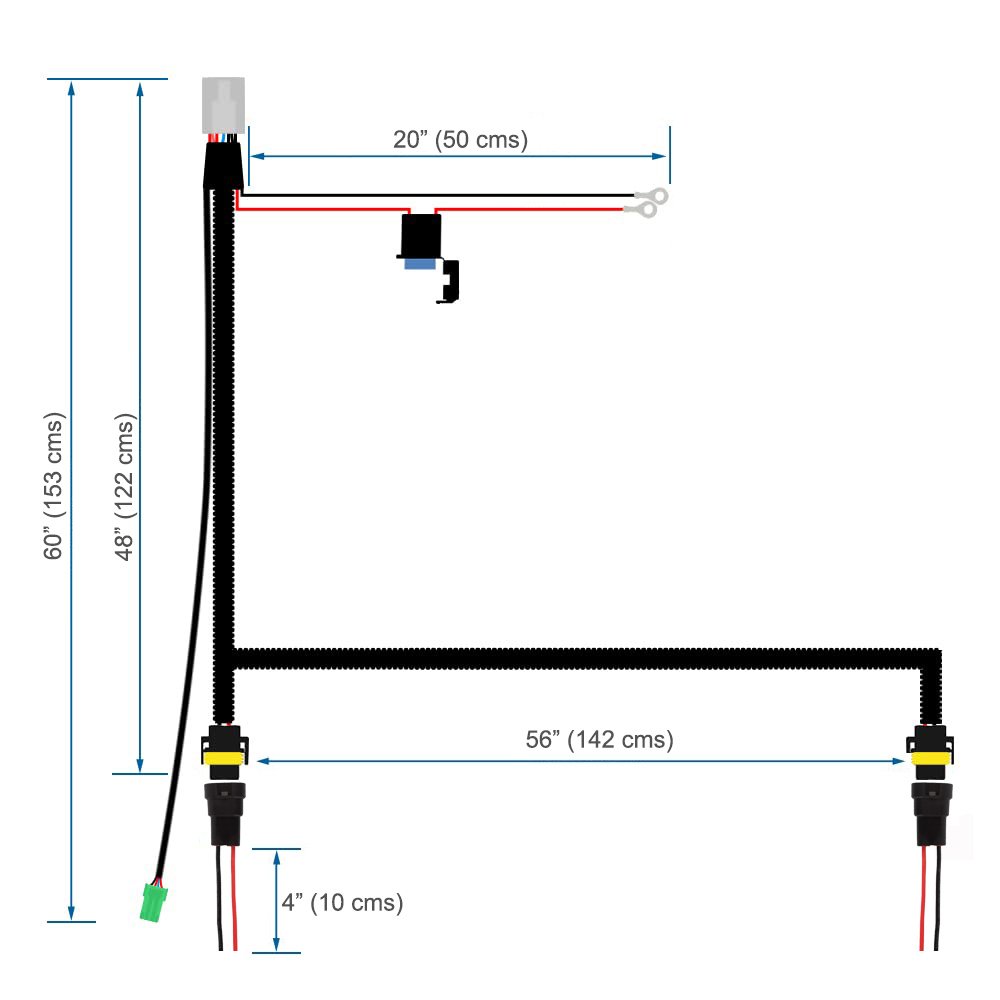

• 2 x H10 male connector sockets 4″ (10 cm) long to adapt the type of light connector needed
SPECIFICATION:
• Wire gauge: 16AWG
• Wire core material: bare copper
• Wire cover material: corrugated tube
• Fuse specification: 30A ATO regular Bladder-type
• Relay specifications: 40A 12V SPST make and break
