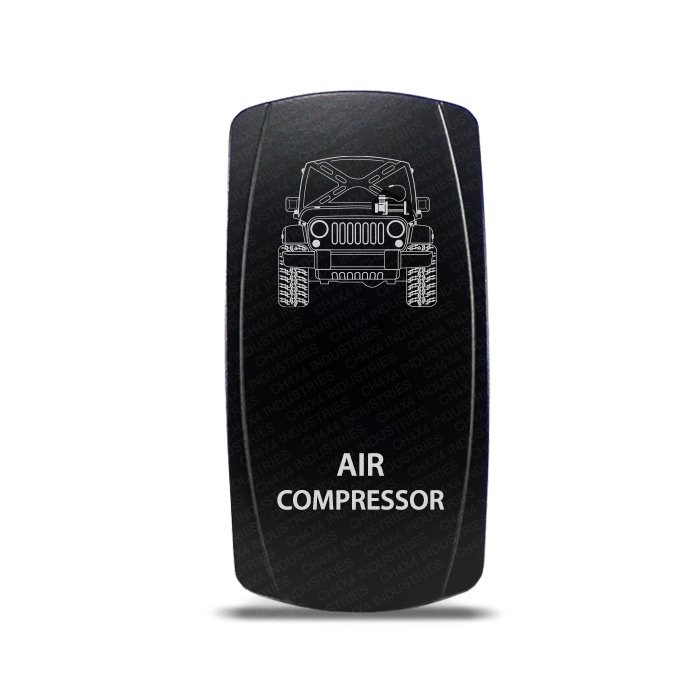

CH4x4 Rocker Switch Jeep JK Air Compressor Symbol – 12V/24V Dual LED Laser-Etched ON/OFF Switch

CH4x4 Rocker Switch Jeep JK Air Compressor Symbol – 12V/24V Dual LED Laser-Etched ON/OFF Switch - Image 2

CH4x4 Rocker Switch Jeep JK Air Compressor Symbol – 12V/24V Dual LED Laser-Etched ON/OFF Switch

$18.98

CH4x4 Rocker Switch Jeep JK Air Compressor Symbol, these high quality 12 volt Rocker switch is a single throw ON – OFF switch designed to operate your 12 volt accessories.

Switch LED Color

Clear

Description
Additional information

The Rocker Switch Jeep JK Air Compressor delivers a reliable single-throw ON/OFF switch, ready to wire into any standard 12V accessory circuit.

The symbol is precision laser etched into the switch face itself, built to outlast years of sun, wash bays, and trail use without fading or peeling.

Dual LED Illumination

Dual LED illumination comes standard, with two independently wired LEDs:

Upper LED illuminates only when the switch is turned ON
Lower LED is wired independently, handy for standalone dash backlighting
Each LED has its own separate ground connection
Available in Amber, Blue, Green, Red, White LED illumination.

Features

Single Pole Single Throw ON-OFF switch
Black hard-surface rocker body
Laser-etched design, never a sticker
Dual independent LED illumination
Rated 20A at 12V / 10A at 24V
Carling / Contura V-style mounting format
Snap-in panel installation, no rear terminal barriers
Wiring diagram included
Works across automotive, 4×4, truck, UTV, ATV, RV, and marine builds

Dimensions

Switch Face: 2" x 1" (50mm x 25mm)
Mounting Cutout: 1.41" x 0.86" (36mm x 22mm)

Note: Note: this switch is a universal aftermarket part, not a direct factory replacement. Always verify your mounting opening before ordering — a switch panel or adapter may be required for some installs.

Weight	2 oz
Dimensions	5 × 5 × 2 in
Orientation	Vertical
Series	Innov
Vehicle	Jeep Designs
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Rocker
Function	On-Off
Controls	Compressor
Voltage	12V 20A, 24V 10A
Compatibility	Carling, Contura V, Jeep

Built For Real-World Use

Every CH4x4 Rocker Switch Jeep JK Air Compressor Symbol – 12V/24V Dual LED Laser-Etched ON/OFF Switch is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Purpose-built to slot into the factory-style dash opening on Jeep Wrangler JK applications, no cutting or adapters needed.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

Will this switch fit my Jeep Wrangler JK?

Yes — this switch is categorized under our Jeep Wrangler JK lineup and matches that application's factory-style dash opening.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
