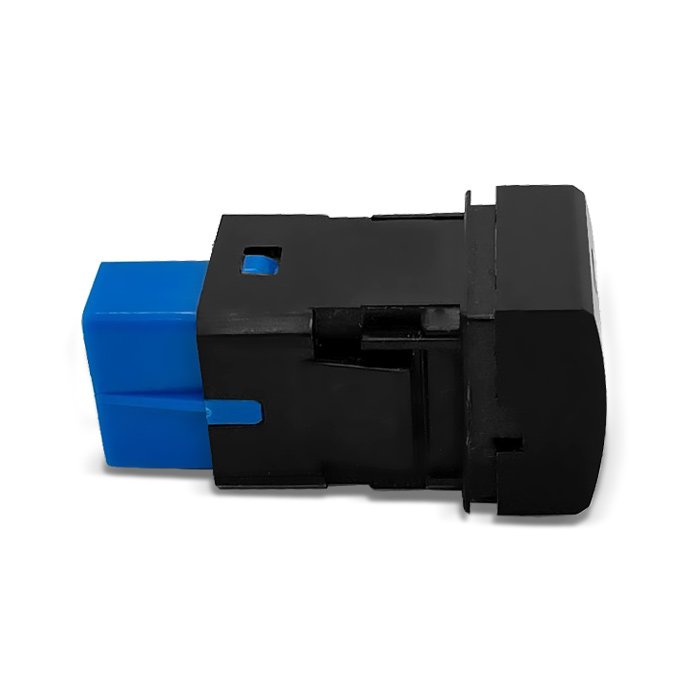

CH4x4 Momentary Square Push Switch for Toyota – Horn Symbol - Image 3

CH4x4 Momentary Square Push Switch for Toyota – Horn Symbol - Image 4

CH4x4 Momentary Square Push Switch for Toyota – Horn Symbol - Image 5

CH4x4 Momentary Square Push Switch for Toyota – Horn Symbol - Image 6

CH4x4 Momentary Square Push Switch for Toyota – Horn Symbol - Image 7

CH4x4 Momentary Square Push Switch for Toyota – Horn Symbol

$23.98

Press and hold to activate; release to turn OFF. This Toyota momentary horn switch has a laser-etched horn icon and a 22 × 22 mm square face. Choose Amber, Blue or White dual LEDs.

Rated at 3A, 12V; a fused relay is required. Check dash opening and horn-system compatibility before ordering.

Switch LED Color

Clear

Description
Additional information

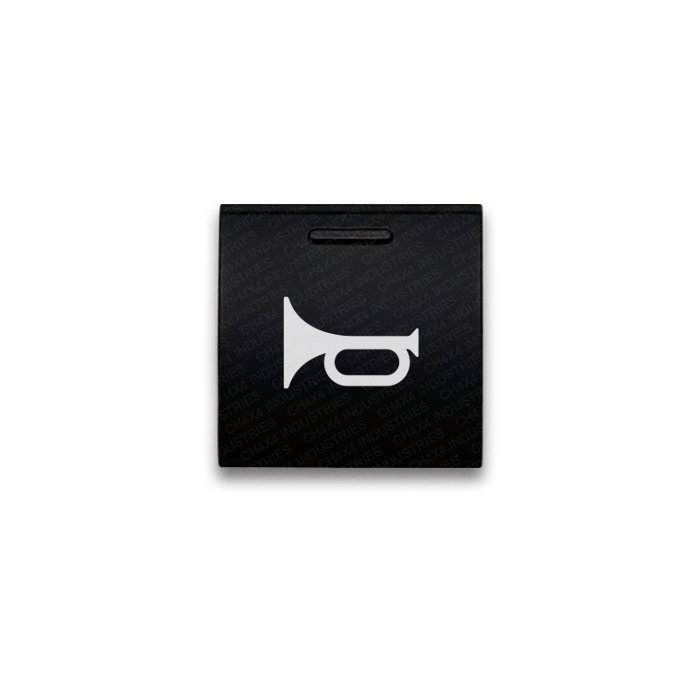

Press to activate the horn control and release to return it to OFF. The CH4X4 Toyota momentary horn switch pairs that push-and-release action with a laser-etched trumpet-shaped horn icon, making its purpose recognizable on the dash. The matte black square face offers an OEM-style appearance for a compatible Toyota opening. Use it with a compatible 12V horn control circuit and the required fused relay.

Momentary operation

The switch stays active only while pressed and returns to OFF when released. It is a momentary SPST control, not a maintained ON/OFF switch. This listing is for the switch, not a complete horn system.

Switch features

22 × 22 mm (0.86 × 0.86 in) face.
Heavy-duty ABS body with a matte black finish.
Laser-etched horn symbol design.
Dual LEDs in your choice of Amber, Blue or White.
Upper LED illuminates while pressed; lower LED can be wired separately to the dash illumination circuit.
Rated at 3A, 12V.

Wiring and installation

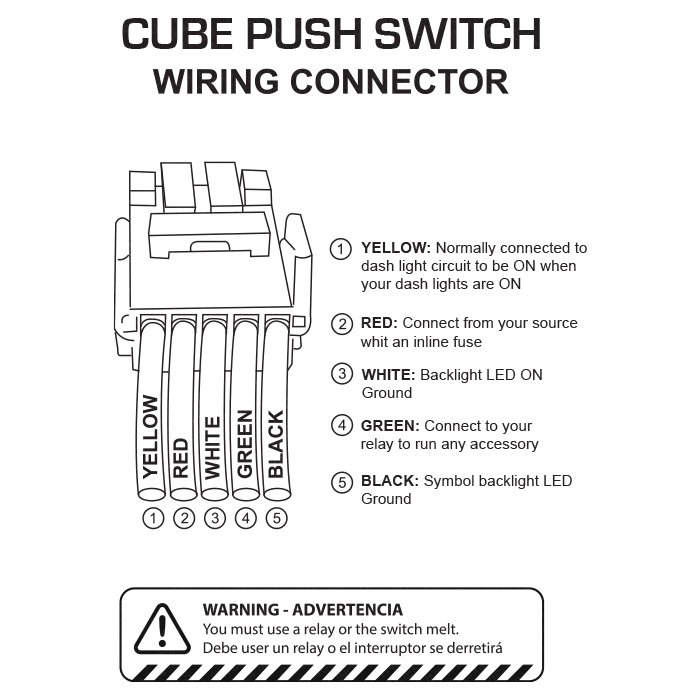

Accessories must be wired through a fused relay. Follow the supplied wiring diagram and confirm compatibility with your horn control circuit. Do not power high-current accessories directly through this switch. See the CH4X4 relay with 5-pin harness for relay specifications.

What is included

One horn symbol momentary square push switch.

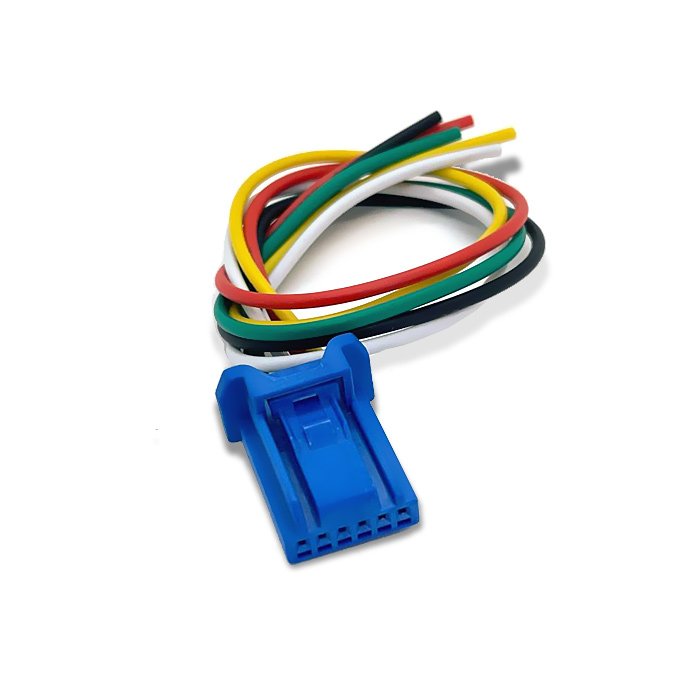

One connector with wiring leads.
Wiring diagram.

Vehicle fitment

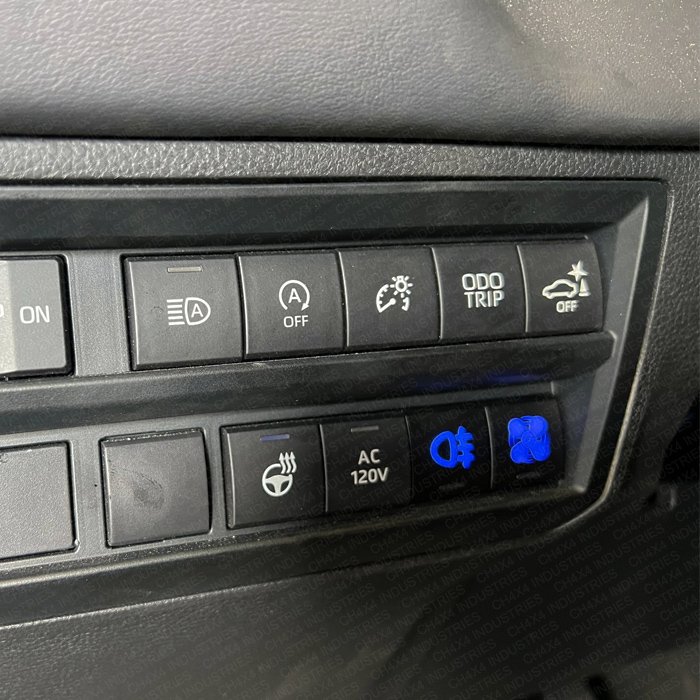

Designed for compatible Toyota square dash switch openings. Confirm your vehicle’s opening and wiring before ordering. The 22 × 22 mm measurement is the face size, not the cutout size.

Toyota Tundra: 2022+
Toyota Sequoia: 2022+
Toyota Land Cruiser 300 Series: 2022+
Toyota Prado 150 Series: from August 2017
Toyota RAV4 and RAV4 Hybrid: from January 2019
Toyota Camry 70 Series: from September 2017
Toyota Hiace: from February 2019
Toyota Corolla: from June 2018

Weight	2 oz
Dimensions	5 × 5 × 3 in
Switch Action	Momentary
Vehicle	Toyota
Switch LED Color	Amber, Blue, White
Switch Type	Square Push
Function	Momentary
Controls	Air Horn
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Momentary Square Push Switch for Toyota – Horn Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a Momentary switch — it only stays active while you hold it and springs back off, ideal for horns, winches, and anything you only want on for a moment.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
