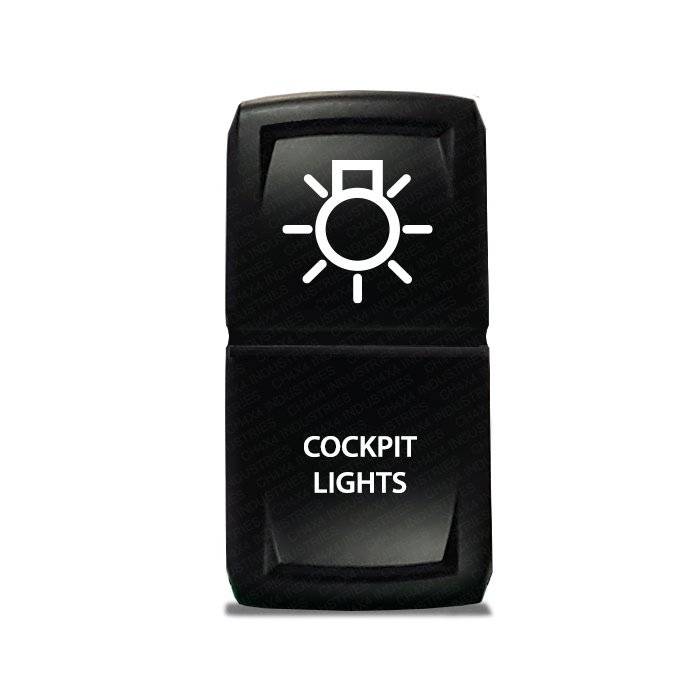

CH4X4 Marine Rocker Switch Cockpit Lights Symbol – 12V/24V Marine-Grade Dual LED Laser-Etched ON/OFF Switch

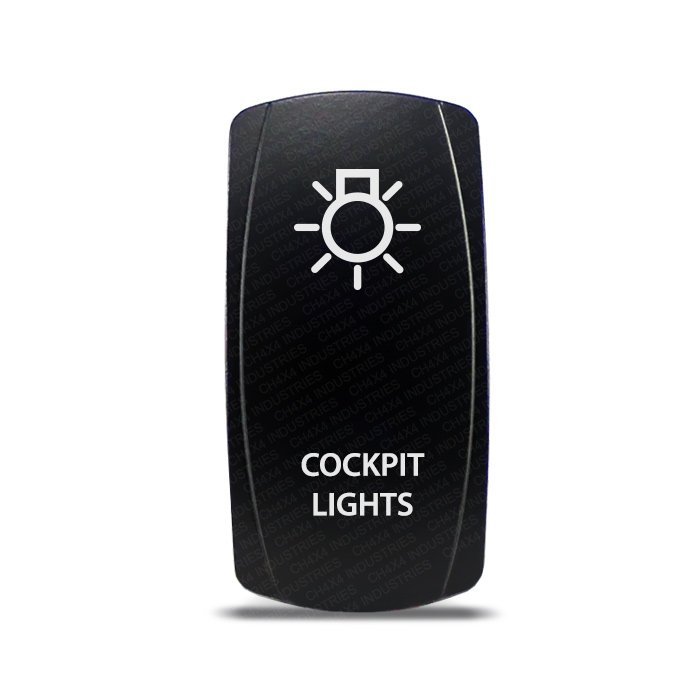

CH4X4 Marine Rocker Switch Cockpit Lights Symbol – 12V/24V Marine-Grade Dual LED Laser-Etched ON/OFF Switch - Image 2

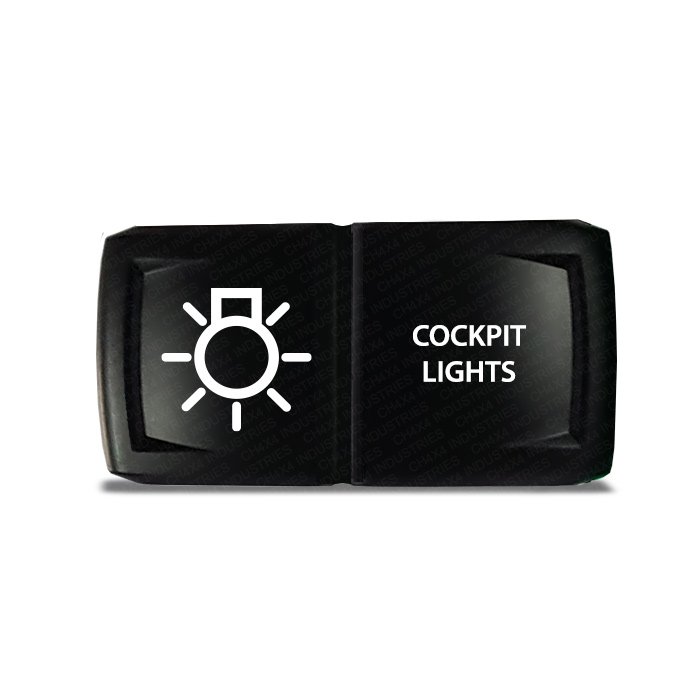

CH4X4 Marine Rocker Switch Cockpit Lights Symbol – 12V/24V Marine-Grade Dual LED Laser-Etched ON/OFF Switch - Image 3

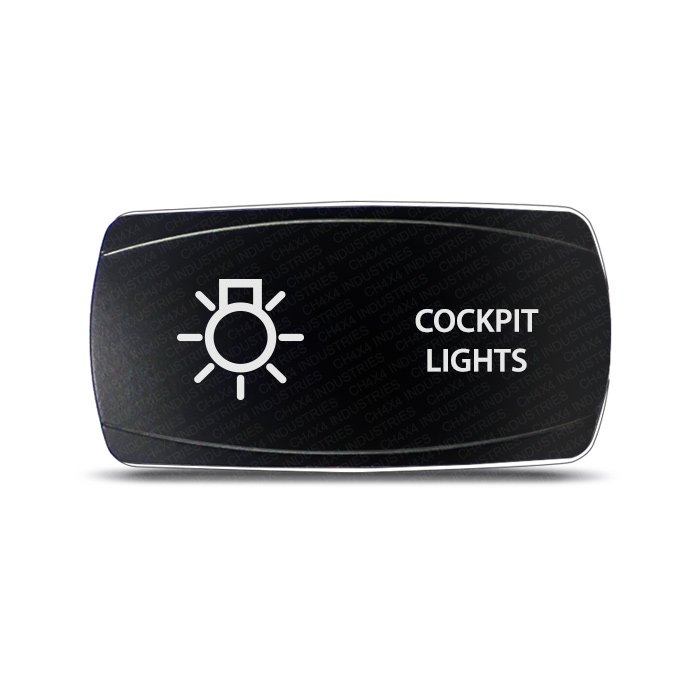

CH4X4 Marine Rocker Switch Cockpit Lights Symbol – 12V/24V Marine-Grade Dual LED Laser-Etched ON/OFF Switch - Image 4

CH4X4 Marine Rocker Switch Cockpit Lights Symbol – 12V/24V Marine-Grade Dual LED Laser-Etched ON/OFF Switch

$18.98

CH4X4 Marine Rocker Switch Cockpit Lights Symbol, these high quality 12 volt Rocker switch is a single throw ON – OFF switch designed to operate your 12 volt accessories.

Switch LED Color

Switch Model

Switch Orientation

Clear

Description
Additional information

A true marine-grade switch, the Marine Rocker Switch Cockpit Lights delivers ON/OFF control rated IP66 for dust, spray, and high-pressure wash resistance.

Rated IP66 and UL1500 for marine ignition protection, it shrugs off vibration, shock, thermal shock, moisture, and salt spray in temperatures from -40°C to 85°C.

Laser etched straight into the switch face, the design won’t fade, peel, or wear off like a sticker or printed decal.

Dual LED Illumination

Two LEDs are built into the switch, wired independently:

Upper LED illuminates only when the switch is turned ON
Lower LED is wired independently, handy for standalone dash backlighting
Each LED has its own separate ground connection
LED illumination options: Amber, Blue, Green, Red, White.

Features

Single Pole Single Throw ON-OFF switch
Black hard-surface rocker body
Laser-etched design, never a sticker
Dual independent LED illumination
Rated 20A at 12V / 10A at 24V
Carling / Contura V-style mounting format
Snap-in panel installation, no rear terminal barriers
Wiring diagram included
IP66-rated, UL1500 marine ignition protection
Works across automotive, 4×4, truck, UTV, ATV, RV, and marine builds

Dimensions

Switch Face: 2" x 1" (50mm x 25mm)
Mounting Cutout: 1.45" x 0.83" (36.83mm x 21.08mm)

Note: This is a universal aftermarket rocker switch, not a factory-specific replacement part. Confirm your panel’s cutout dimensions before ordering — some vehicles may need an adapter panel or minor modification to fit.

Weight	2 oz
Dimensions	5 × 5 × 2 in
Vehicle	Marine Designs
Switch LED Color	Amber, Blue, Green, Red, White
Switch Model	Regular Rocker Cap, V2 Rocker Cap
Switch Orientation	Horizontal, Vertical
Switch Type	Rocker
Function	On-Off
Voltage	12V 20A, 24V 10A
Compatibility	Carling, Contura V
Environment	Marine Weatherproof
Orientation	Vertical

Built For Real-World Use

Every CH4X4 Marine Rocker Switch Cockpit Lights Symbol – 12V/24V Marine-Grade Dual LED Laser-Etched ON/OFF Switch is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Marine applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Marine applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
